CUSTOM ITEM: Inline Filter, for HPLC, female connections All-PEEK filter holder only. Uses disposable filters which are sold separately. ARE-Applied Research brand. Bulk Price.
Additional Info:

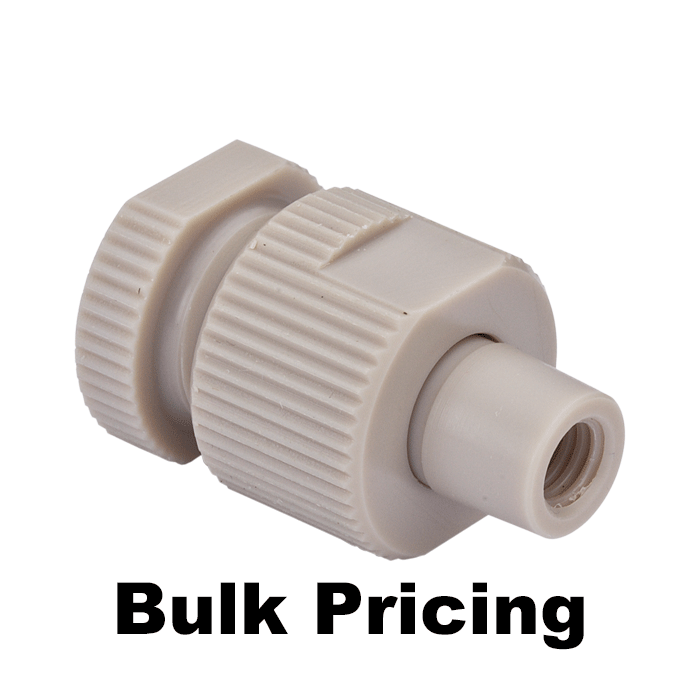

The 49681-TF ARE‑Applied Research Inline Filter Holder is an all‑PEEK inline filter housing, designed for HPLC systems requiring flexible, user‑selected filtration.
This filter‑ready design (no element included and sold separately) allows users to choose the appropriate filter material and pore size, providing adaptability across different applications. The all‑PEEK construction ensures chemical inertness and compatibility with aggressive solvents, while the reusable design supports long‑term, cost‑effective use.
The holder also functions as an inline union with filtration capability, offering flexibility in system configuration.
Notice
This made‑to‑order item is final sale and cannot be returned or canceled
Lead times and availability may vary
✅ For ordering details and availability:
Custom Order Information for 49681-TF All‑PEEK Inline HPLC Filter Holder (Filter‑Ready Design)
Key Features
All‑PEEK Filter Holder
Metal‑free, chemically inert construction
Suitable for aggressive solvents and biocompatible workflows
Filter‑Ready Design (No Filter Included)
Accepts PEEK‑encased filters (6.25 mm OD × 1/16 inch thick)
Allows flexibility in pore size and filter material selection
✅ Suggested option:
Designed for Standard HPLC Conditions
Suitable for:
Up to ~4,500 psi pressure
Up to ~5 mL/min flow rates
⚠️ Not recommended for UHPLC systems
Column & Instrument Protection
Helps reduce:
Particulate contamination
Column clogging and variability
Extends column and system life
Reusable Holder Design
Durable and reusable for long‑term operation
Reduces overall filtration costs
Easy Installation & Maintenance
Install after the pump and before the injector
Fits standard HPLC threads and pilot lengths
Can be hand‑tightened or wrench‑installed
Filters can be replaced quickly when pressure increases
Flexible System Integration
Functions as:
Inline filter holder
Tubing union with filtration capability
✅ Also available:
Specifications
Type: Inline Filter Holder (No Filter Included)
Housing Material: All‑PEEK
Filter Compatibility: 6.25 mm OD × 1/16 inch thick PEEK‑encased filters
Connection Type: Female
Pressure Range: Up to ~4,500 psi
Flow Rate Range: Up to ~5 mL/min
Compatibility: Standard HPLC systems (not UHPLC)
Brand: ARE‑Applied Research
Typical Applications
HPLC systems, mobile phase filtration (with selected filters), column protection, system configuration flexibility, and applications requiring customizable inline filtration
